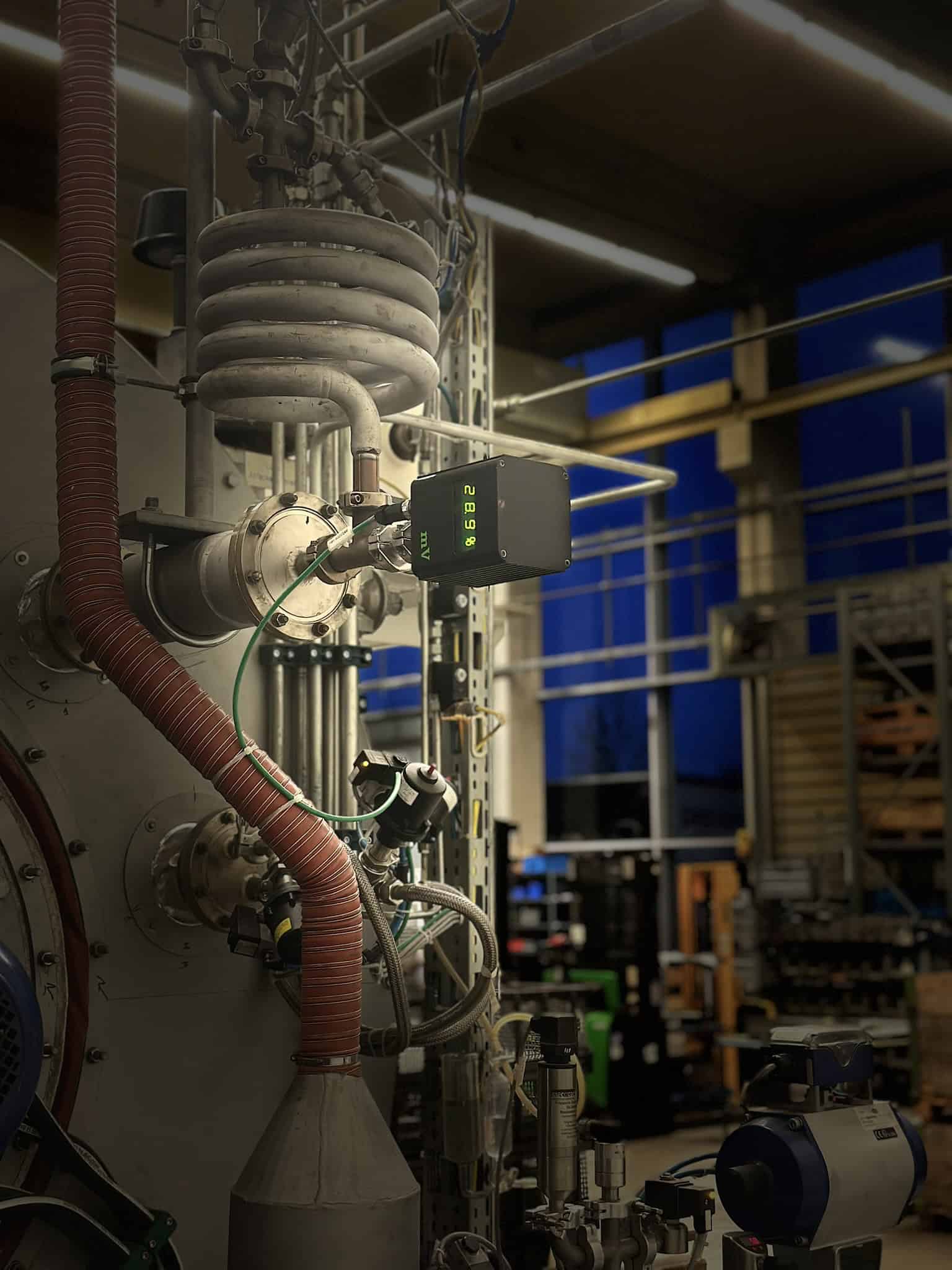

H2S Hydrogen Sensor

Hydrogen Sensor for Nitriding and Nitrocarbuirizing Processes

  • Measurement principle: Thermal Conductivity
  • Measurement block temperature: 100 °C
    to avoid Ammonium Carbonate Precipitation and Condensation
  • Measurement range: 0 … 100 % H2:N2
  • Accuracy: +/- 0.5 % of measurement
    +/- 0.25 % of end value
    independent of ambient temperature influence
    (heated measuring electronics)
  • max. environment temperature : 75 °C
  • Process connection: KF16
  • Sample gas transport: based on local pressure
    differences
  • vacuum-tight construction, suitable for systems that can be evacuated
  • Power supply: 24V DC, max. 2 A
  • Analogue output: 0/4 … 20 mA
  • Digital output: 24V; 0,25 A (Betriebsbereitschaft oder Fehler)
  • Network connection with Modbus/TCP and MQTT protocol, Configuration via
    integrierted Webserver
  • Display: LED 4 digits
  • Electrical connection : 1 x M12 (Supply, Analogue output, Digital output), RJ45 (Network)
